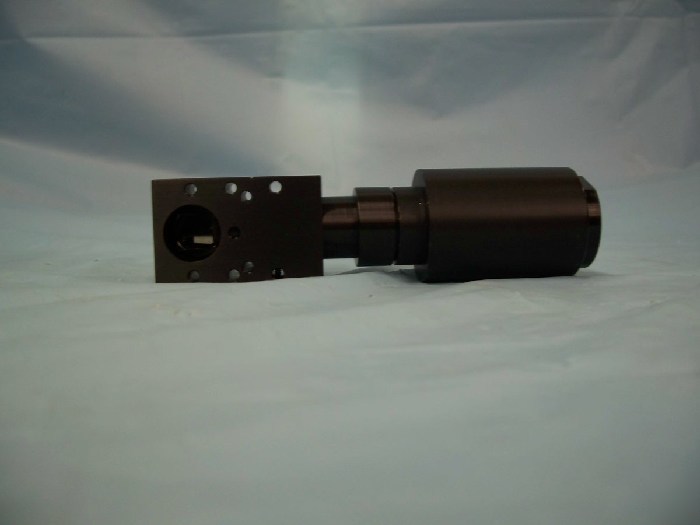

90 DEGREE OPTICAL ASSEMBLY MIRRORED CROSS-HAIR LENS
The lens has no scratches and is is excellent condition.
This is a 90* lense assembly with interferance type Mirrored cross-hair lens. The cross hair is what is actually visible when squaring up a piece for machining. It has a high magnification lens.
Overall length is 156mm long with 41mm diameter/largest width. Behind that focus length between the mirror and the optical assembly is controlled by a set screw in the block containing the mirror. The mirror can be adjusted by a set screw to make sure it is precisely 90* to the optical assembly.
Mirrored block assembly is 58mm long x 32mm height/25 height x 38mm wide. It has 6 counter sunk holes to attach it to whatever.
Optical assembly overall length is 133mm
The end piece with viewing hole measures 35mm diameter(with 2 flats on opposite sides with set screw hole) x approx. 7mm long. Continuing down the optical assembley the diameter increases to 41mm x 57mm long. The next dimension is 28mm diameter x 22mm long. The end piece measures 22mm diameter x 47mm long.
Please feel free to email if you require any other information or dimensions not listed. Thank you.
