> 100 ton reis 4-post hyd spotting & tryout press #25162
100 ton reis 4-post hyd spotting & tryout press #25162
For Sale: 100 ton reis 4-post hyd spotting & tryout press #25162
Subject 100 ton reis 4-post hyd spotting & tryout press #25162
Ad is submitted by poster:

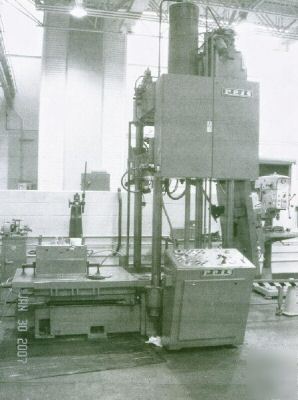

100 TON REIS 4-POST HYDRAULIC SPOTTING & TRYOUT PRESS
New 1983, Serial No 02.073.00, Model TUS 90OK-100
Tonnage Capacity....................... 100 TON
Stroke Length, Maximum................. 43.3"
Bolster Plate to Ram, Maximum.......... 40.75
Distance Between Uprights, F-B x L-R... 36.6" x 27.75"
Platen Size, Upper F-B x L-R........... 35.37" X 47.16"
Platen Size, Lower F-B x L-R........... 35.37" x 50.5"
Upper Platen, Tilt Range............... 190-DEGREES
Ram Output............................. 1000 kN
Operating Pressure..................... 190 BAR
Hydraulic Motor, KW Rating............. 7.5 KW
Electrical System...................... 480/3/60
Floor Space Required, L x W............ 12'5" x 6'
Overall Height......................... 13'4"
Weight Approximately................... 22100 LBS
PRICE: F.O.B. OUR WAREHOUSE............ $49,500.00
All machines/equipment subject to prior sale.
repair--parts.com bears NO responsibility for this ad. Please report ads that do not follow our
rules (on front page).
Posted By: Bernice Underwood
Contact: BerniceUnderwood@repair--parts.com (Bernice Underwood) (this is a temporary forwarding address).
