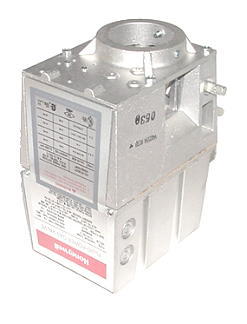

Honeywell low pressure actuator V4055A1098 (2203)
For Sale: Honeywell low pressure actuator V4055A1098 (2203)
Subject Honeywell low pressure actuator V4055A1098 (2203)
Ad is submitted by poster:
Low pressure ON-OFF actuator normally used with V5055/V5097A,B valve bodies
• Use where smooth light off is important.
• One-second maximum closing time.
• Always displays the valve position, when open a red indicator appears and closed a yellow indicator appears.
• Mount in any position directly to valve bonnet with three setscrews.
• Provide final safety shutoff service when used with V5055 or V5097 Gas Valves.
Product Specifications Back To Top
Description ON-OFF actuator normally used with V5055/V5097A,B valve bodies
Timing (Closing) < 1 sec Yes
Electrical Ratings 120 Vac
Electrical Ratings 110 Vac
Internal Auxiliary Switch No
Maximum Operating Pressure (psi) 5 psi
Temperature Range (F) -10 F to +158 F
Temperature Range (C) -23 C to +70 C
Proof of Closure Auxiliary Switch No
Used With V5055;V5097 Gas Valves
