CUSTOM 10" STROKE PNEUMATIC PISTON ASSEMBLY PRESS & AIR FOOT PEDAL
Unsure of manufacturer, or specific function / operation this unit was designed to accommodate.

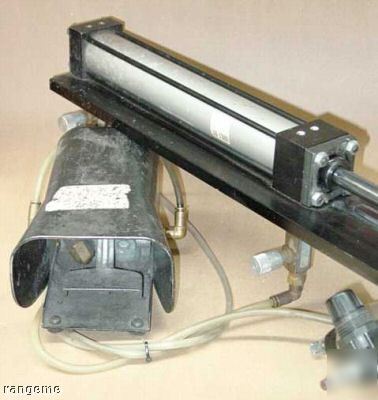

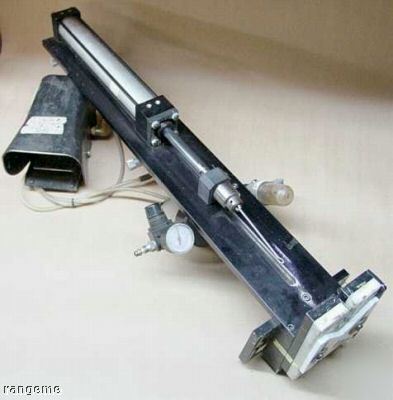

Design configuration similar to that of a common vertical drill press. . .Essentially consists of a vertical aluminum body / frame on which a 10" stroke Pneumatic Cylinder is mounted. Pneumatic Piston Stroke remotely controlled via Pneumatic / Air Actuated Foot Pedal.

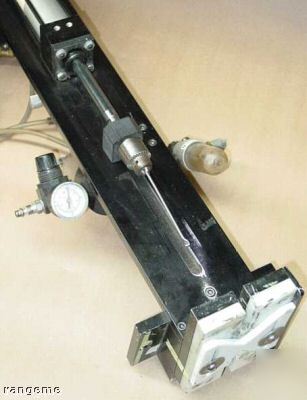

Piston Rod is fitted with a 3/8" Capacity Jacobs Drill Chuck, which unlike a drill press, is not intended to rotate on a spindle, but remains fixed with the sole purpose of chucking a steel rod having a hooked end, which held unknown material for unknown operation. Most likely, the purpose of hook was for pulling / tensioning, or tension release.

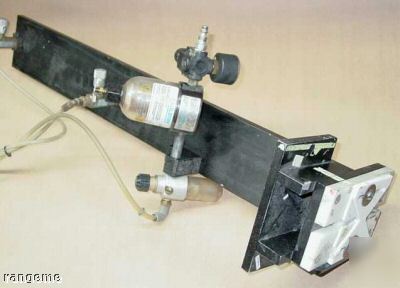

Comes fitted with Air Regulator Assembly and attached Air Lines shown in photos.
We have not hooked these up to Air Supply for testing, but generally appear to be in good physical shape.
