Complete english wheel weld up kit sale price
For Sale: Complete english wheel weld up kit sale price
Subject Complete english wheel weld up kit sale price
Ad is submitted by poster:
We've finally made the change to adding small flats to the anvils. On the 2" radius there is about an eight of an inch flat in the middle before thye radius begins. The bigger the radius the wider the flat. It is hard to see but you can feel it by running your finger over it. These flats arguably make it easier to curve your panel without tracks. I personally think the arguement is not worth a bucket of spit but my competition seems to have convinced alot of people they are needed so there you go, FLATS! The +/- .001 runout is no more important. We have always been close but now we have gone to the trouble to set up a cradle and indicator to ensure that you recieve the accuracy you don't really need!

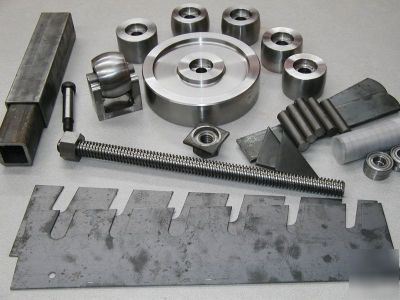

This is everything you need except for the 2x4 tube.
I have changed some things since I took these pictures. The telescoping tube and top wheel mounts have the holes drilled in them. The bottom tube for adjusting thumb screws and the uppers with wheel mounting holes and holes for the planishing hammer conversion. The anvils are radiused on the ends. I would take new pictues but I am busy.

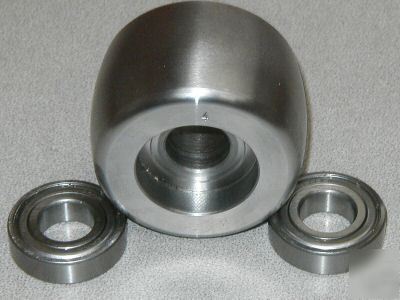

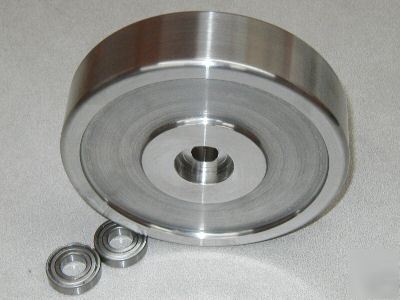

I've radiused the edges of my anvils and top wheels for a smother look and less marking. The cradle is made from 3/8 x 2" CR with a 3/4"grove for the pin to rest on about 5/16 deep. There is about .015" clearance total between the ends of the wheel and the side of the cradle.- I have included 17 1/2" of 1" acme thread w/ 5 threads per inch and two nuts. One nut to weld to the frame member for adjustment and another to weld on the bottom of the screw to make a hand wheel with. I include 3 pcs of 1/2 round to weld on. It gives you a good gap to slip your knee or thigh in to adjust the screw as you roll. I've included two 1/4x2" straps at 4.5" and 9.5". They are what I used on my machine. They are Punched for a 3/4 shoulder bolt, included.- The anvils are 2"wide and 3"OD heat treated 31 - 33 Rc 4130 Chrome-moly. Flat, 2", 3", 4", 6" & 12" radius anvils. The upper wheel is 2" wide and 8" round same 4130. I have reccesed the face to give it a more professional look. Comes with 7 pair of bearings and 6 pcs 3/4"x 2.6" CF RND. And a 2 1/16Sq x 1/4" plate to weld the nut to the frame with, two gussets for added strenght, 10" of 2 1/4"sq w/ 12ga(.102) wall telescoping tubing and 2"sq 1/4" wall tubing.

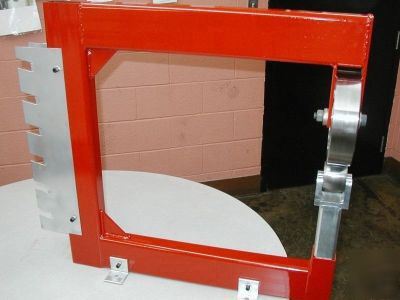

I have one of the bench top models listed and it is pretty easy to figure out how it goes together.
I use 2x4x1/4" tubing cut at 28, 24 & 21 7/8"
Three years and I just got my first negative and if that don't beat all I got another. Please remember we manufacture everything in this kit and we occasionally run out of stock. Plus we are not all that bright and we made a mistake.
This kit is available with an upgrade quick release for $95.
