Ttc t-berd 209OSP 1 carrier analyzer
For Sale: Ttc t-berd 209OSP 1 carrier analyzer
Subject Ttc t-berd 209OSP 1 carrier analyzer
Ad is submitted by poster:
* 209OSP-1 - DC Measurements
* 209OSP-2 - TDR Measurements
* 209OSP-3 - Channel Monitor
* 209OSP-4 - Advanced Stress Patterns
* 209OSP-6 - Smart Loopback/Command Codes
* 209OSP-8 - HDSL/ISDN/DDS Measurement

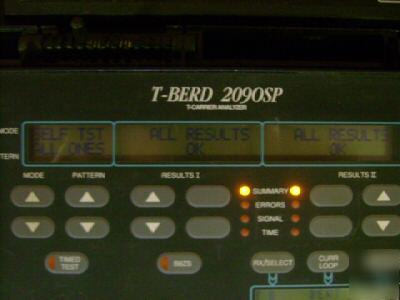

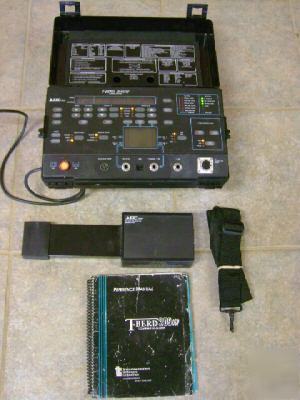

T-BERD Outside Plant Tester ( T-Carrier Analyzer )
* Copper analysis with DC measurements and graphical TDR
* Combined testing of digital services and circuits - T1, HDSL, DDS and ISDN
* Rugged NEMA 4X compliant design endures the harsh weather conditions
* Battery-powered operation allows for field-portable testing
* Reliable testing and proven performance
* Input and Output Connectors: WECO 310, 15-pin D, T1 Repeater Port, 8 pin RS-232, RJ48
* Bridge: 1000 ohm with ALBO
* Term: 100 ohm with ALBO
* DSX-MON: 100 ohm with AGC
* Bridge or term: +6 dBdsx to -35 dBdsx (T1), +3 dBdsx to -6 dBdsx (T1C)
* DSX-MON: +6 dBdsx to -24 dBdsx (T1), +3 dBdsx to -24 dBdsx (T1C)
* +6.0 dBdsx to -40 dBdsx
* +6 to -6, 0.1 dB resolution
* -6 to -40, 0.5 dB resolution
* Frequency Measurement: 1 Hz resolutions; 5 ppm accuracy
* Transmit Timing Sources: Internal Clock, Recovered Clock
* Loopback Codes: CSU, CSU Line (ESF), CSU Payload (ESF), NIU (FAC1, FAC2, FAC3), NIU Network (ESF), Programmable (3 to 8 bits), Intelligent Repeaters, HDSL End-Equipment
* Resistance: 10 ohm to 10 Mohm
* Volts DC: 0.5 to 400 VDC
* Simplex Current: 0 to 200 mA
* Pulse Amplitude: 10.0 V p-p
* Measurement Range: 50 to 10,500 ft
* Loop Loss: 0.0 dB to 40.0 db
* Loop Length: 100 to 20,000 ft
* Capacitance: 1500 pF to 323,500 pF
* Power: -40.0 to +13.0 dB
