Precise digital vibration tester meter model VM6360
For Sale: Precise digital vibration tester meter model VM6360
Subject Precise digital vibration tester meter model VM6360
Ad is submitted by poster:
Item : Digital Vibration Meter (One year full warranty)
* In accordance with ISO2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes.
* Individual high quality accelerometer for accurate and repeatable measurements
* Bearing condition monitoring function
* Light weight and easy to use
* Wide frequency range (10Hz. to 10k Hz.) in acceleration mode
* Automatic power shut off to conserve power.
* LCD display : 4 digits, 18mm LCD
* Transducer : Piezoelectric accelerometer
* Velocity, Acceleration and Displacement
* Velocity : 0.01 - 40.00 cm/s True RMS
* Acceleration : 0.1 - 40.00 m/s2 equivalent peak
* Displacement : 0.001 - 4.000 mm
0.04 - 160.0 mil, equivalent pk - pk * RPM (r / min) : 60 - 99,990 r/min
Readings should be multiplied by 10 if the display show '10'.
* Frequency range for measuring
* Acceleration : 10Hz. to 1k Hz. in '1' mode
10Hz. to 10kHz in '10' mode for bearing condition checking
* Velocity : 10Hz. to 1kHz.
* Displacement : 10Hz. to 1kHz.
* Accuracy : + / - 5% n + 2 digits
* Metric / Imperial conversion
* Output : AC Output 2.0V peak full scale (load resistance : above 10k)
* Power supply : 4 x 1.5 AAA size batteries (not included)
* Operating temperature : 0 - 50°C
* Operating Humidity : below 90% RH
* Item dimension : 124 x 62 x 30mm / 4.9 x 2.4 x 1.2 inch
* Item weight : 120g (not including batteries)

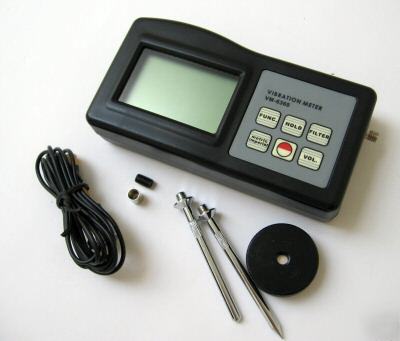

* 1pc Vibration meter (main unit)
* 1pc Powerful rare earth magnet

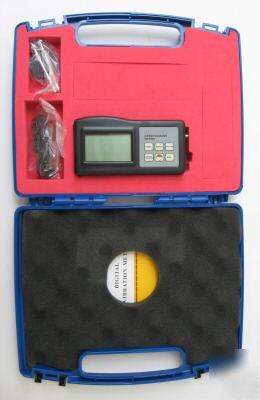

* Packed the full set into a carry case (case as picture shown)
such as packing materials, administration & labor, local logistics fee and etc. This fee is
Item will be sent by registered airmail from Hong Kong to worldwide at flat rate as specified.
A posting certificate with tracking number can be provided upon request.
We are Hong Kong supplier since year 2001 with exporting business in nature.
Our core product range are Consumer Electronics, Gifts & Premiums and Health
We are very experienced of selling far-east's products to worldwide. This kind of
expose enable us to bringing you great far-east products at very good price.
Any queries about us or the item are welcome!
