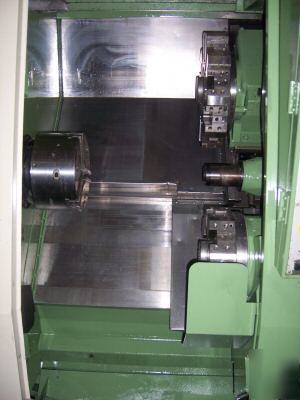

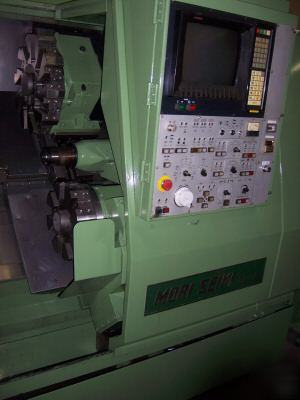

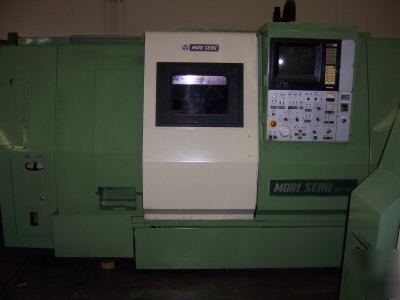

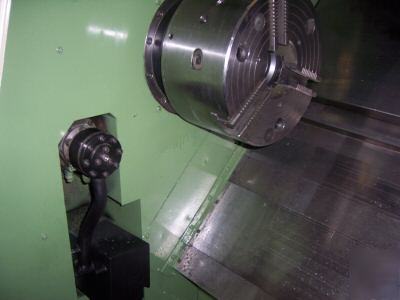

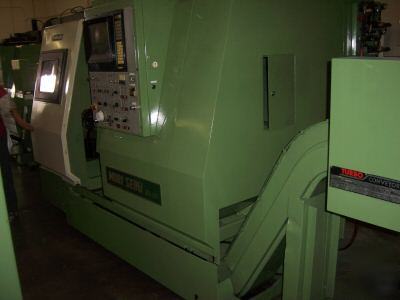

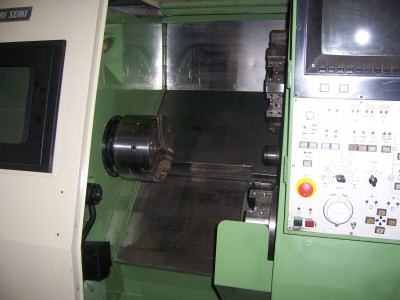

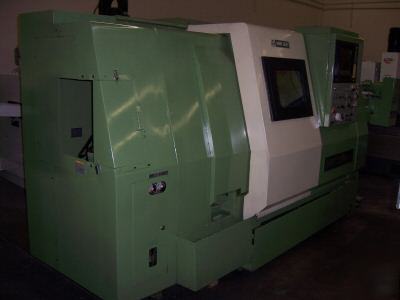

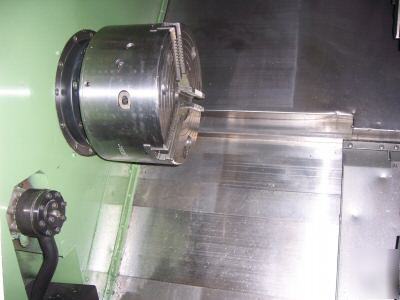

Mori - seiki cnc zl-25 lathe fanuc 11T 12" chuck
For Sale: Mori - seiki cnc zl-25 lathe fanuc 11T 12" chuck
Subject Mori - seiki cnc zl-25 lathe fanuc 11T 12" chuck
Ad is submitted by poster:
Max Swing Over Bed..................................... 20.47"
Max Swing Over Cross Slide............................. 13.78"
Maximum Turning Diameter............................... 10.24"
Maximum Turning Length................................. 20.87"
Standard Chuck Size.................................... 10"
Cross Travel Turret 1 (X1-Axis)........................ 6.3"
Longitudinal Travel Turret 1 (Z1-Axis)................. 23.23"
Cross Travel Turret 2 (X2-Axis)........................ 6.3"
Longitudinal Travel Turret 2 (Z2-Axis)................. 23.23"
Rapid Traverse Rate (X1, X2 Axes)...................... 472 IPM
Rapid Traverse Rate (Z1, Z2 Axes)...................... 590 IPM
Number of Turrets...................................... 2
Tool Positions Turret 1................................ 10
Tool Positions Turret 2................................ 8
Spindle Bore........................................... 3.15"
Spindle Nose........................................... A2-6
Spindle Speed Range.................................... 35-3500 RPM
Spindle Horsepower..................................... 25 HP
Approximate Machine Dimensions (w/o Barfeeder)......... 182" x 72"
Approximate Machine Height............................. 80"
Approximate Machine Weight............................. 15,840 LBS
CONDITION: This Machine Appears to be in Excellent Condition!
repair--parts.com bears NO responsibility for this ad. Please report ads that do not follow our
rules (on front page).
Posted By: Leonard Barker
Contact: Leonard-Barker@repair--parts.com (Leonard Barker) (this is a temporary forwarding address).
