Siemens sentron series circuit breaker ED63B070 70 amp
For Sale: Siemens sentron series circuit breaker ED63B070 70 amp
Subject Siemens sentron series circuit breaker ED63B070 70 amp
Ad is submitted by poster:

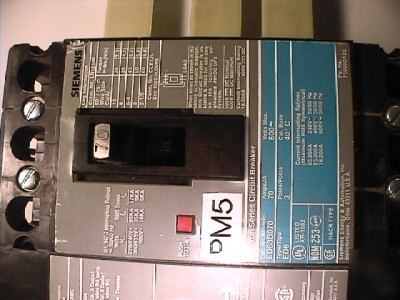

Siemens Sentron ED63B070 circuit breaker 3 pole 3 phase 70 amp

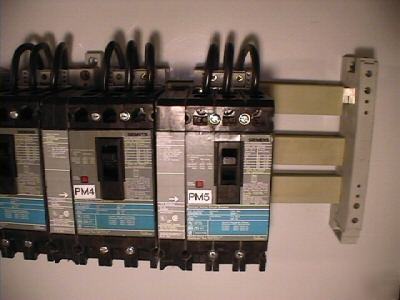

For sale are Siemens Sentron series circuit breakers, model ED63B070, up to 600v rated at 70 amps. These also have the circuit breaker accessory which is an auxiliary switch contact connected, also Siemens catalog number AO1ED62 (or A01ED62), it can be removed if you don't want it. These do not include the mounting bars pictured.

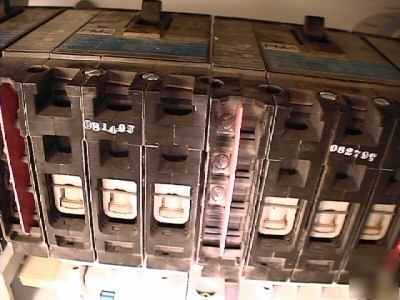

I’ve disassembled 1 panelboard to sell off the components but the rest are still intact, and contain the handler mechanism, Siemens main contactor 3tf55, Siemens Sentron ED63B070 CB,s still mounted on Siemens Fast Bus busbars, Siemens X-formers, and about 30-40 Siemens control relays and small CB’s (3TH2040 & 55SX22 & 5SX21 series).
Have the original Siemens cut sheets, and a Siemens 30 page PDF file for Sentron Series molded case circuit breakers which includes a reference guide, spec on the JD frames, technical data/dimensions and adjustable trip data for the trip unit.
Although this is considered used it has not seen a load on the output, I will guerantee the first 16/20 of these.
ITE Siemens ED63B070 Specifications:
THERMAL MAGNETIC; 3 POLE; 600 VAC, 500 VDC; 70 AMPERE AT 40 DEG C; INTERRUPTING RATING 65 KILOAMPERE AT 240 VAC, 25 KILOAMPERE AT 480 VAC, 18 KILOAMPERE AT 600 VAC/500 VDC (UL); 65 KILOAMPERE AT 220/240 VAC 50/60 HZ, 35 KILOAMPERE AT 380/415 VAC 50/60 HZ, 18 KILOAMPERE AT 500 VAC 50/60 HZ (IEC); LUG LOAD TERMINAL TERMINAL; WIRE SIZE 10 TO 1/0 AWG (ALUMINUM/COPPER); SIZE 3 INCH W X 4.56 INCH D X 6.35 INCH H; APPROVAL UL 489, CSA 22.2, CE; SENTRON[R] BRAND; ED6 MODEL; BLUE LABEL; ICS RATING 17 KILOAMPERE AT 220/240 VAC 50/60 HZ, 9 KILOAMPERE AT 380/415 VAC 50/60 HZ, 5 KILOAMPERE AT 500 VAC 50/60 HZ (IEC)
Also have Siemens PDF spec sheet for this series of breaker,
