New port 1918-c hand-held optical meter
For Sale: New port 1918-c hand-held optical meter
Subject New port 1918-c hand-held optical meter
Ad is submitted by poster:
Technology Equipment Corp is a global dealer of new and used high-tech equipment, parts & materials, including fiber optics, test equipment, semiconductor manufacturing instrumentation, laboratory, microscopes, metrology, and more.

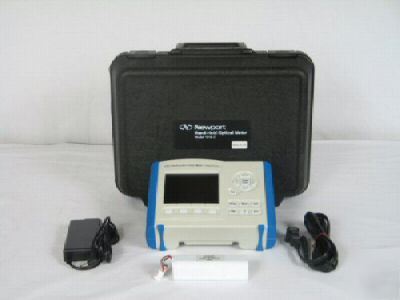

Newport 1918-C Hand-Held Optical Meter Used
Model/Part No:1918-C Our Item ID: 4116
Calibration Certificate Starup Guide with Application and Driver Software CD AC adapter (Model TR36A-24) Newport 1918 battery (P/N 45083-01)
1918-C General Power/Energy Meter Specifications Compatible, Hot-swappable Newport Detectors 918D, 918L, 818P, 818E, and 818 (w/adapter) Sampling Rate (kHz) 100 Measurement Rate (kHz) 4 Display Refresh Rate (Hz) 20 Maximum Rep Rate (kHz) 2 (Pyroelectric Detectors) Maximum Rep Rate (kHz) 4 (Photodiode Detectors, Peak to Peak Power) Resolution (% of Full Scale) 0.0004 CW Accuracy (%) ±0.1 Accuracy (%) ±1 (Peak to Peak, Pulse to Pulse, Integration) Maximum Detector Input Current (mA) 25 Maximum Detector Input Voltage (V) 130 Analog Output (User Selectable) 0-1 V , 0-2 V, or 0-5 V into 1MW Analog Output Bandwidth DC-500 kHz (Photodiode), DC-1 MHz (Thermo or Pyro) Display Type 82 x 62 mm Graphical, Color TFT LCD, ¼ VGA Display Formats 14 mm Numeric, Bar Chart, Min/Max Bar, Statistics Communication Interfaces USB Internal Sample Storage (data points) 250,000 External Sample Storage (data points) Defined by external USB Flash drive (user supplied) Battery Type and Life (Typical) Rechargeable, 8 Hours Power Requirements 90-240 VAC, 24V 1.5A Operating Temperature 10°C to 40°C, <80% RH Storage Temperature Range -20°C to 60°C, <90% RH Weight [lb (kg)] 2.3 (1.04) Dimensions (W x H x D) [in. (mm)] 7.6 (193) x 5.4 (137) x 2.4 (61) Calibrated Measurements with 918D and 918L Series Photodiode Detectors (1) Minimum Detectable Power (pW) 11.1 Maximum Input Power (W) 2 Wavelength Range (nm) 200-1800 Supported Advanced Features Temperature Compensation and Attenuator Sensing Calibrated Measurements with 818P Series Thermopile Detectors (1) Minimum Detectable Power (mW) 1 Maximum Input Power (W) 400 Wavelength Range 190 nm - 11 mm Calibrated Measurements with 818E Series Pyroelectric Detectors (1) Minimum Detectable Energy (mJ) 6.7 mJ Maximum Measurable Energy (J) 75 J Wavelength Range 190 nm - 20 mm
Item Tested?: TestedPhysical Condition: Excellent; Working Condition: Fully Functional3 | 16x14x8 | 1
18409 N. Cave Creek Rd., Suite 2-401
repair--parts.com bears NO responsibility for this ad. Please report ads that do not follow our
rules (on front page).
Posted By: Diane Munoz
Contact: DianeMunoz@repair--parts.com (Diane Munoz) (this is a temporary forwarding address).
