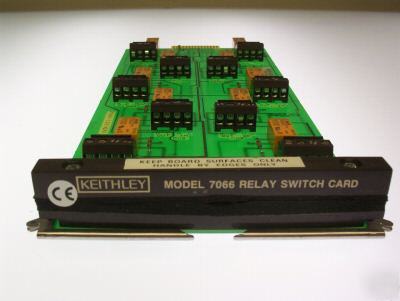

Keithley 7066 10 chan switch card
For Sale: Keithley 7066 10 chan switch card
Subject Keithley 7066 10 chan switch card
Ad is submitted by poster:
Tested working. 7 day Right of Return
The Model 7066 is a non-multiplexed switching card with ten independent and isolated channels. Each channel switches 2-pole Form A relays and can be user changed for either Form B or Form C configuration using jumpers. The switch specifications are well-suited for applications such as power line switching, controlling external circuits and devices, and switching signals where multiplexing is not desired. Each channel is terminated with a screw terminal block that “quick disconnects†from the card.
CONTACT CONFIGURATION: 2-pole Form A.
CONNECTOR TYPE: Quick disconnect block for each channel. Screw terminals accept #14–#26AWG wire.
RELAY DRIVE CURRENT: 80mA per relay typical.
MAXIMUM SIGNAL LEVEL: 250V DC or rms, 350V peak switched, 2A DC or rms, 60W DC or rms. 60W DC, 125V AC (resistive load).
CONTACT RESISTANCE: <0.1 ohm initial, <2 ohm rated life.
CONTACT POTENTIAL: <30µV per contact pair input to output with copper leads (<10µV typical).
ACTUATION TIME: <10ms, exclusive of mainframe.
CHANNEL ISOLATION: >10^9 ohms.
COMMON MODE VOLTAGE: 350V peak.
OPERATING ENVIRONMENT: –25° to 65°C.
repair--parts.com bears NO responsibility for this ad. Please report ads that do not follow our
rules (on front page).
Posted By: Bob Trujillo
Contact: bobtrujillo@repair--parts.com (Bob Trujillo) (this is a temporary forwarding address).
