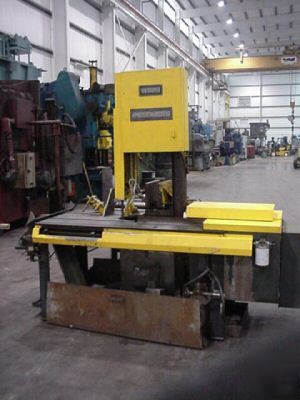

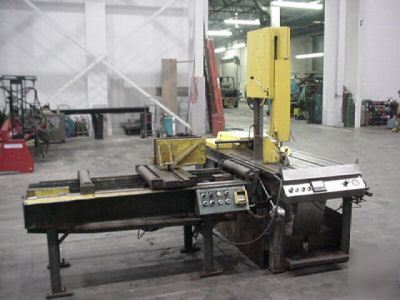

18" x 20" peerless tilting frame vertical band saw
For Sale: 18" x 20" peerless tilting frame vertical band saw
Subject 18" x 20" peerless tilting frame vertical band saw
Ad is submitted by poster:
18" x 20" PEERLESS TILTING FRAME VERTICAL BAND SAW
Serial # VB1820U-89-89 New 1989 Model # P-VB1820UA
Rated Capacity: 18" Deep x 20" High
Rated Capacity at 45 Degree Tilt: 18" x 13"
Adjustable Hydraulic Feed Pressure: 0 to 400 Lbs.
Variable Blade Speeds: Rate Unknown
Hydraulic System: 2-1/2 Gal., 3 GPM Vane Pump, 1HP, 1800 RPM
Bar Feed Conveyor Capacity: 1000 Lbs. / Foot
Bar Feed Stroke: 1/8" to 48" Single Stroke, 96" Multi Stroke
Table Vise Jaw Size: 9-1/4" High
Bar Feed Vise Size: 9-1/2" High x 18" Long
1/4 HP Coolant Pump Motor, Wired for 220/400 Volts
Spare Rebuilt PLC Control Module
(1) Hydraulic Clamping Adjustable Vise on Table
Manual Tilting of Saw Frame Head

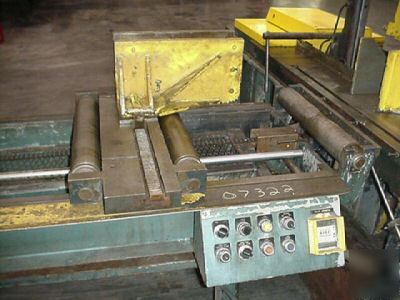

Hydraulic Bar Feed System with Roller Type Work Supports
Instruction and Repair Parts Manuals
Floor Space Required for Operation: 10' Square
Blade Drive Motor: 2 HP @1800 RPM
Wired for 3 Phase, 60 Cycle, 230/460 Volts
Overall Machine: 40" L-R x 96" F-B x 85" High
Bar Feed System: 76" L-R x 50" F-B x 45" High
Coolant Pan & Misc.: 66" Long x 32" Wide x 17" High
Approx. Total Weight 4,000 Lbs.
