Hp/agilent 8664A synthesized signal generator w/opts.
For Sale: Hp/agilent 8664A synthesized signal generator w/opts.
Subject Hp/agilent 8664A synthesized signal generator w/opts.
Ad is submitted by poster:

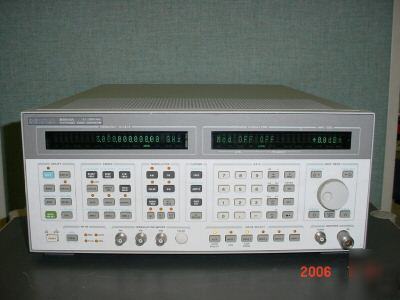

HP/Agilent 8664A Synthesized Signal Generato with Options 001 and 004
The Agilent 8664A signal generator is suited for basic receiver testing up to 3.0 GHz. With Option 004 (low-noise enhancement), it can be used for out-of-channel receiver testing or as a clock source where having the lowest phase jitter is important. Radar testing can be done by adding Option 008 (pulse modulation) . Pulse width and delay can be internally adjusted between 50 ns and 999 ns, eliminating the need for an external pulse generator. Standard FM rates of up to 2 MHz and deviations to 10 MHz are suitable for many applications such as high-speed digital communications.
* <-140 dBc/Hz typical SSB phase noise at 20 kHz offset at 1 GHz with Option 004
* <-100 dBc nonharmonic spurious to 2 GHz reduces error when testing spurious immunity of receivers
* AM, FM, and optional pulse modulation
* 0.1 MHz to 3 GHz frequency range
* 50 ms frequency switching time
* -139 dBm to 13 dBm power range
* Generates AM and FM modulation
* Can operate in Linear and Log sweep modes
* Option 001 = High Stability Timebase
* Option 004 = Low-Noise Option
This item includes a CD copy of Manual, and Power Cord
* Our hours of operation are M-F, 10-5PM Pacific Standard Time.
Phone: (***) 257-2445 Fax: (***) 257-6310
