Gn nettest laserprecision td-1000A fiber sm otdr power


For Sale: Gn nettest laserprecision td-1000A fiber sm otdr power


Subject Gn nettest laserprecision td-1000A fiber sm otdr power

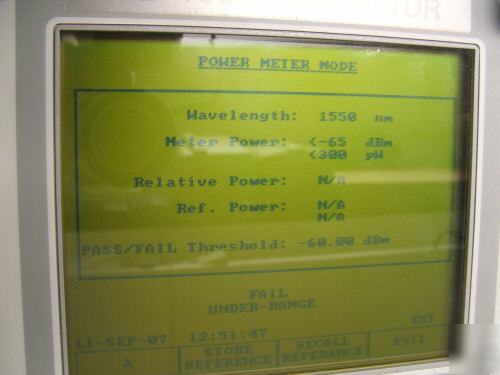

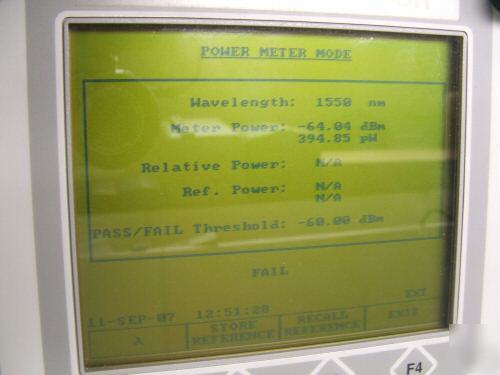

Ad is submitted by poster: GN NETTEST FiberWizard Laser Precision TD-1000A Fiber Optic Single Mode 1310nm 1550nm MINI OTDR ( Optical Time Domain Reflectometer ) with Built in Optical Power Meter.
This unit has a Current CALIBRATION!
(PRICE WAS JUST REDUCED FOR QUICK SALE)!
*This OTDR comes with two BRAND NEW Battery Packs!

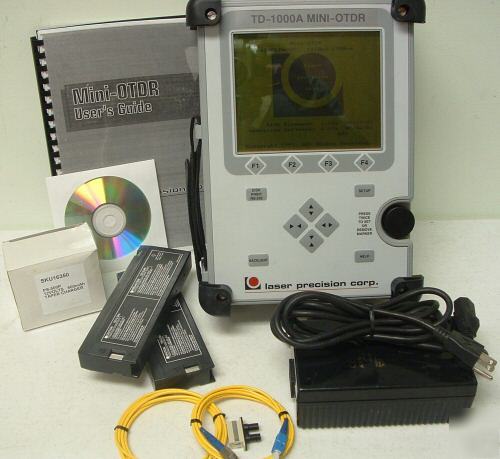

Included Accessories Listed at the Bottom.
Be sure to add us to your Favorites list!.
Warranty: 30 Day Exchange Warranty

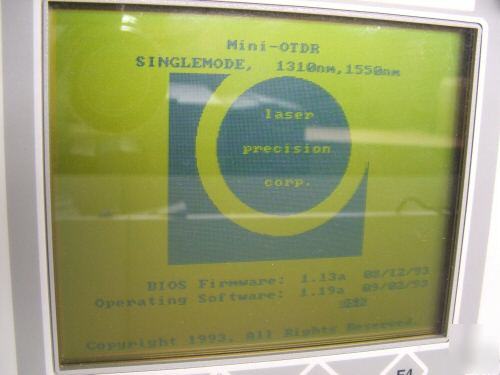

GN Nettest Laser Precision TD-1000A FiberWizard MINI-OTDR Single-mode 1310nm & 1550nm.
GN Nettest Fiber Wizard TD1000A/HR Mini-OTDR Optical Time Domain Reflectometer Laser Precision Division
Center Wavelength1310/1550nm +/- 20nm
Max Spectral Width < or = 20nm (Singlemode)
Distance Range1.2km; 4km; 9km; 20km; 40km; 81km; 164km
Data Resolution0.313m, 0.625m, 1.25m, 2.5m, 5m, 10m, 20m
Distance Accuracy0.0025% X distance +/- distance resolution
Vertical Linearity+/- 0.1 dB/dB to within 8 dB of the 98% noise floor

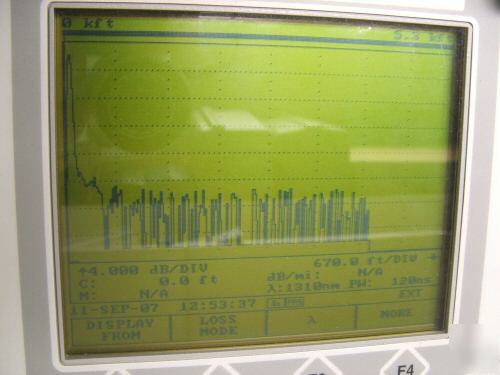

Real Time Display Update2/secpnd
Measurement Range1320nM: 23.5dB
Initial Reflective Deadzone (typ)3m @ 1310nM and 1550nM
Initial Non-Reflective Deadzone (typ)15m @1310nM and 20m@HYPERLINK "mailto:1550nM@1550nM"1550nM
Display7 inch diagonal LCD with backlight
Light SourceModes: CW, 1kHz & 2kHz

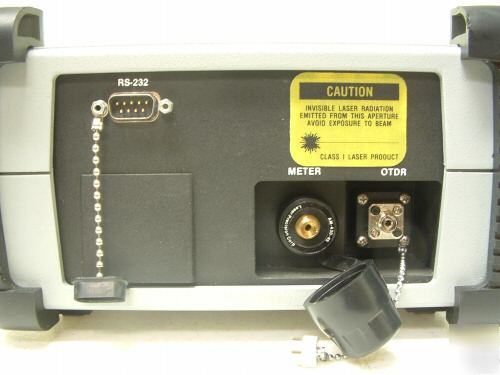

Connector typeUniversal Connector Interface with ST connector

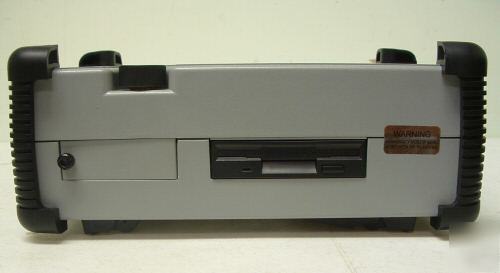

Data Storage1.44MB Floppy Drive
Operating Temperature 0 ºC to 40 ºC
Storage Temperature -20 °C to +60 °C
Mechanical & General Specifications
* 1- ST to ST SM Fiber Patch Cord
* 1- FC to SC SM Fiber Patch Cord
repair--parts.com bears NO responsibility for this ad. Please report ads that do not follow our rules (on front page). Posted By: Lesa Valentine
Contact: Lesa-valentine@repair--parts.com (Lesa Valentine) (this is a temporary forwarding address).
