Fluke network dsp-100 digital cable analyzer CAT5 test
For Sale: Fluke network dsp-100 digital cable analyzer CAT5 test
Subject Fluke network dsp-100 digital cable analyzer CAT5 test
Ad is submitted by poster:
Fluke DSP-100 CAT5 Digital Cable Analyzer w/
DSP-SR Smart Remote and Accessories
Included Accessories Listed at the Bottom.
Be sure to add us to your Favorites list!.
Warranty: 30 Day Exchange Warranty

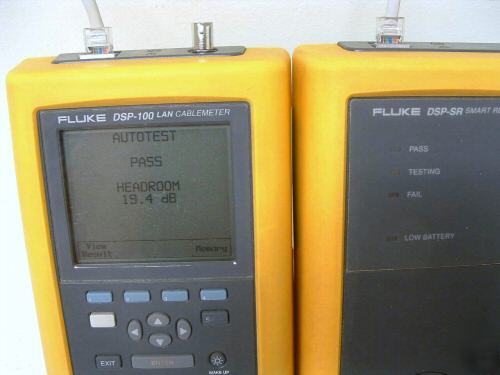

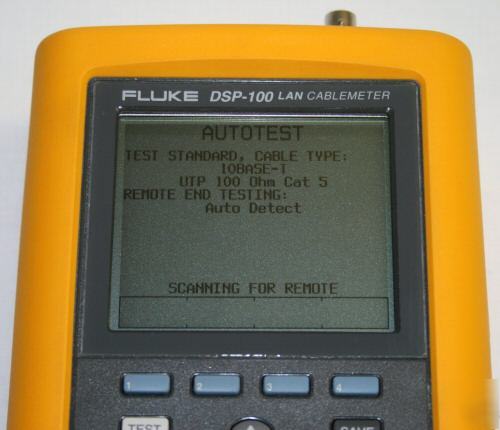

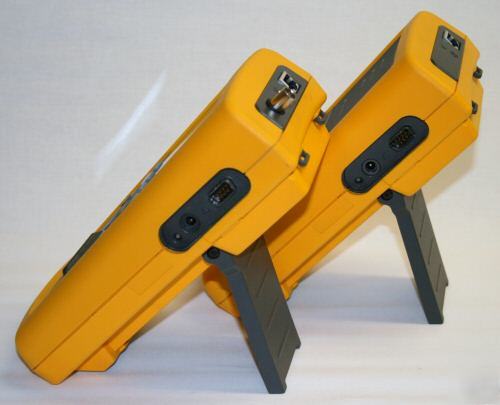

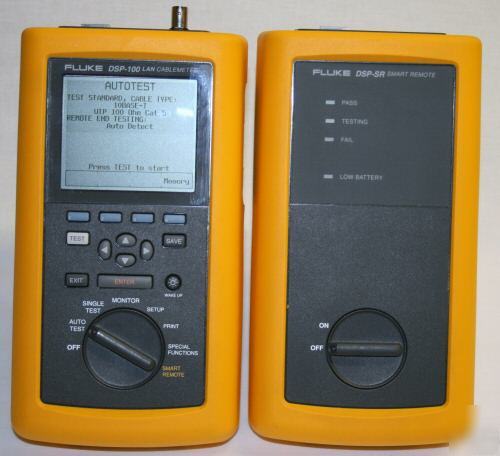

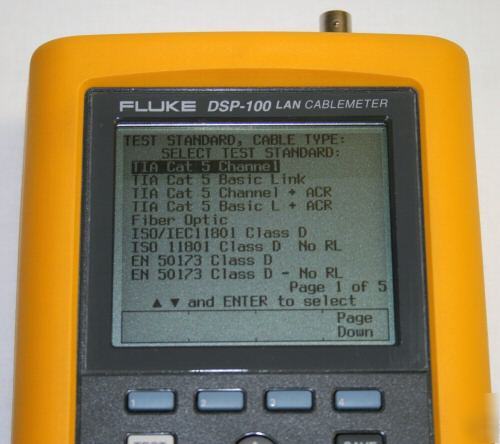

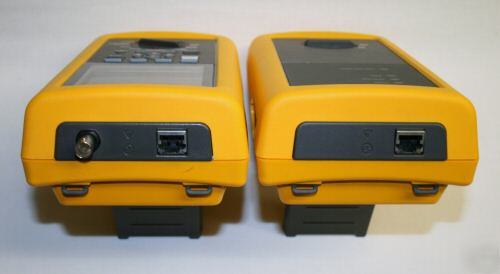

Fluke DSP-100 Digital Cable Analyzer With DSP-SR Smart Remote
Provides auto-diagnostics of cabling faults in graphical and text representations
Provides fast test times: completes test of a 4-pair Cat 5 cable in 17 seconds
Stores 1,150 TIA TSB-67 test results and 600 ISO test results
Monitors traffic on 10BASE-T networks to help you identify if the cable link is the source of the problem
Tests a wide variety of LAN cabling systems: UTP, FTP, STP (IBM type 1, 2, 6, 9), Coax
Fluke Networks' DSP Digital CableAnalyzer Series has an option for every cabling application. Need a low-cost way to test and maintain cabling systems to meet existing Cat 5 standards. Fluke Networks' DSP-100 Digital CableMeter is the perfect choice.
When paired with the optional Fluke Networks DSP-FTK Fiber Test Kit, the DSP-100 detects bad connections, bad splices, broken fibers, and loss of power from bends and fiber-type mismatches. It precisely measures power loss from fiber optic cables used in premise wiring and LAN networks in dB with digital accuracy, and measures optical power in dBm or W. The Fiber Test Kit includes an Optical Power Meter (DSP-FOM), a combination 850/1300 nm Fiber Optic Source, patch cords and a coupler. All products feature lightweight, heavy-duty design for rugged field use.
The optional LS1310/1350 Laser Source functions as a companion to the Fluke Networks Fiber Optic Meter (DSP-FOM), further enhancing the DSP-100's testing capabilities. The Laser Source also includes a 1310/1550 nm laser light source, patch cords, ST/ST adapter and hard carrying case. Other power optical sources are also available.
Generates Complete Reports Through a PC or Directly to a Printer
You can record and store any combination of copper or fiber optic Autotest reports with the DSP Series cable testers. Each test report can be assigned a unique, user-definable label, and can be downloaded to a PC or printed directly from the cable tester to a serial printer. Test reports contain wavelength, measured loss, loss limit, test direction and reference level. The fiber test results may be saved in the tester memory using a cable name of up to 27 characters.

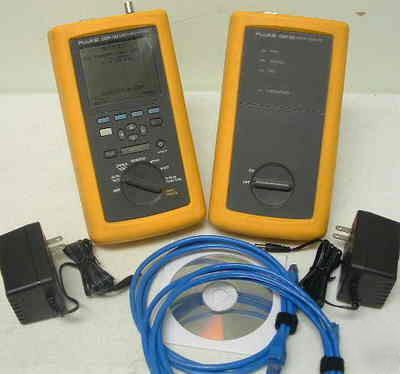

* Fluke DSP-100 Digital Cable Analyzer
* Manual and Utilities on CD-ROM
* LinkWare Test Management Software
