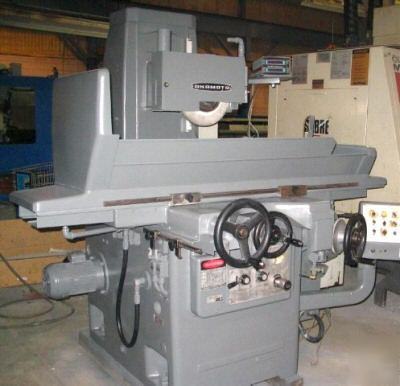

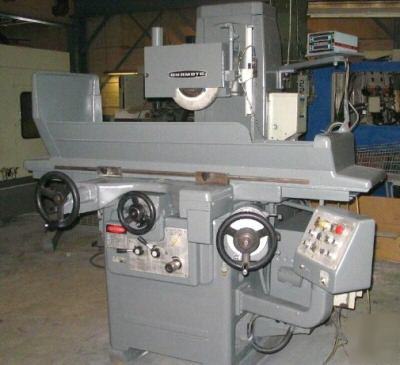

Okamoto 12" x 24" hydraulic surface grinder - automatic
For Sale: Okamoto 12" x 24" hydraulic surface grinder - automatic
Subject Okamoto 12" x 24" hydraulic surface grinder - automatic
Ad is submitted by poster:
If you are interested in the condition of the machine we recommend that you schedule a visit to our warehouse for a demonstration of the machine under power. If you cannot make it out to see the machine in person we can provide you with a video of the machine under power.
MAXIMUM GRINDING LENGTH X WIDTH........... 24" X 12"
MAXIMUM VERTICAL CLEARANCE................ 12.7" (W/14" WHEEL)
.......................................... 13.7" (W/12" WHEEL)
MAXIMUM WORKPIECE WEIGHT.................. 930 POUNDS
MAXIMUM TRAVEL............................(X) 29.5"
..........................................(Y) 13.4"
LONGITUDINAL MOVEMENT OF TABLE
HYDRAULIC FEED............................ 1-100 FPM
HYDRAULIC INTERMITTENT FEED............... 0.02"-0.8"
HYDRAULIC CONTINUOUS FEED................. 4-40 IPM
HAND FEED PER REVOLUTION.................. 0.25"
GRADUATION OF HANDWHEEL................... 0.001"
VERTICAL MOVEMENT OF WHEELHEAD
AUTOMATIC FEED PER TABLE STROKE........... 0.0001"-0.0015"
HAND FEED PER REVOLUTION.................. 0.005"
MANUAL MICRO FEED......................... 0.0001"-0.0015"
GRADUATION OF HANDWHEEL................... 0.0001"
RAPID FEED................................ 19 IPM
MOTOR..................................... 5HP
GRINDING WHEEL............................ 12" X 1-1/2" X 5" BORE
GRINDING WHEEL SPEED...................... 1800 RPM
FLOOR SPACE REQUIRED...................... 103" X 74" X 73"
MACHINE WEIGHT (APPROXIMATE).............. 4900 POUNDS
2 AXIS DIGITAL READ OUT ON VERTICAL (UP/DOWN) AND CROSS FEEDS (IN/OUT)
AUTOMATIC INCREMENTAL DOWNFEED
12" X 24" ELECTRO-MAGNETIC CHUCK WITH UPGRADED RECTIFIER AND CONTOL
THREE WAY COMBINATION COOLANT SYSTEM, DUST COLLECTOR, AND MAGNETIC SEPERATOR
(1) mounted wheel hub and (1) spare wheel hub
6-position sparkout switch (zero through 5 pass sparkout)
