#V200 index cnc vertical turning lathe #22880
For Sale: #V200 index cnc vertical turning lathe #22880
Subject #V200 index cnc vertical turning lathe #22880
Ad is submitted by poster:

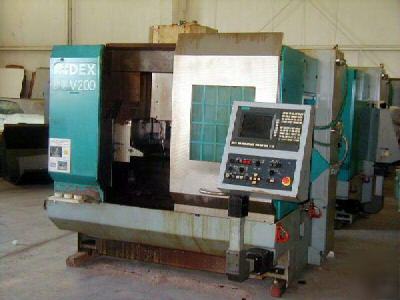

#V200 INDEX CNC VERTICAL TURNING LATHE
New 1998, Serial No V200100299, Model V200,
Index #C200-4 CNC Control w/10" Monitor
(14) Station Tool Turret w/Tooling
Vertical Thermosymmetric Headstock
Hydraulic Solid Chuck Actuator
5.12" Chuck - Variable Speed AC Drive
Swing Diameter, Maximum................ 16.54" 420MM
Turning Length......................... 7.87" 200MM
Compound Slide X-Axis Travel........... 20.47" 520MM
Compound Slide Z-Axis Travel........... 7.87" 200MM
Spindle Through Capacity............... 2.3" 60MM
Spindle Speed Range.................... 0 to 5000 RPM
Compound Slide Feed Force.............. 1124LBS 5000N
Compound Slide Rapid Traverse.......... 1181 IPM 30 MPM
Chuck Actuating Stroke................. 1.26" 32MM
Spindle Horsepower @ 100%.............. 27 HP 20 KW
Spindle Horsepower @ 40%............... 39 HP 29 KW
Floor Space Required, L x W............ 6'11" x 6'3"
Weight Approximately................... 7300 LBS
NOTE: This Machine Appears To Be In Very Good
Condition With A Replacement Price Of Over
PRICE: F.O.B. OUR WAREHOUSE............ $79,500.00
All machines/equipment subject to prior sale.
repair--parts.com bears NO responsibility for this ad. Please report ads that do not follow our
rules (on front page).
Posted By: Dorthy Preston
Contact: dorthy-preston@repair--parts.com (Dorthy Preston) (this is a temporary forwarding address).
