ER8-DIO16 relay board 50/26 pin for labview 12V #500001
For Sale: ER8-DIO16 relay board 50/26 pin for labview 12V #500001
Subject ER8-DIO16 relay board 50/26 pin for labview 12V #500001
Ad is submitted by poster:

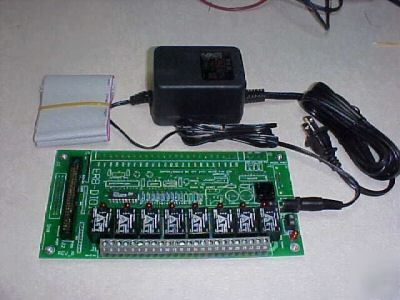

ER8-DIO16-50pin-12vdc Relay Board
#50000ER8-DIO16 Relay Board 50 / 26 Pin for Labview
QTY 1 12vdc 2.1mm Power Supply
QTY 1 50 Pin Ribon Cable
QTY 8 high current 10 amp relays with 8x3 (NO-COM-NC) high current screw terminals. The standard ER8 has only 3 amp capability.
There are about 15 different mfgs of this relay (Aromat JS1 Series or equiv). The 50 pin and 26 pin control connectors are compatable with the standard NI DIO-24 and 26 pin input.
Another feature of the ER8-DIO16 is the input power. A full wave bridge rectifier allows the power input to be AC or DC.
It also prevents you from miss wiring the polarity of the input voltage. (a vary common error for DC).
The power input also has a 1 amp fuse, a power indicator Led, a 2.1mm wall wart plug and 2 screw terminals for direct connect.
/images/500001/100004REVB-11-09-03dim1.pdf
/images/500001/ER8-12VDC-PARTSLIST.pdf Parts List
/images/500001/er8-dio16-schematic.pdf Schematic
/images/500001/500001-Assembly-Instructions-ER8-Relay-bd.pdf Assembly Instructions
500001-12v w/cable & power supply
