#m-H500 mitsubishi 4-axis cnc horiz machining center
For Sale: #m-H500 mitsubishi 4-axis cnc horiz machining center
Subject #m-H500 mitsubishi 4-axis cnc horiz machining center
Ad is submitted by poster:

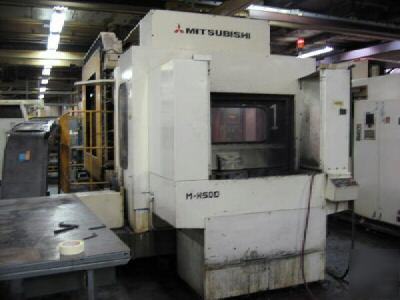

#M-H500 MITSUBISHI 4-AXIS CNC HORIZONTAL
MACHINING CENTER w/2-PALLET-SHUTTLE
New 1998, Serial No H5A-127, Model H500/50,
(2) 19.7" x 19.7" .001-Degree Pallet-Shuttle
60-Position Automatic Tool Changer
Pallet Shuttle Dimensions, W x L....... 19.7" x 19.7"
Pallet Load Capacity (each)............ 1320 LBS
X-Axis Table Longitudinal Travel....... 28"
Y-Axis Head Vertical Travel............ 24.6"
Z-Axis Column In-Out Travel............ 23.6"
Spindle-Center to Table-Top, Minimum... 2"
Spindle-Center to Table-Top, Maximum... 26.8"
Spindle-Nose to Table-Center, Minimum.. 5.9"
Spindle-Nose to Table-Center, Maximum.. 29.5"
Spindle Taper.......................... #50 ISO N.T.
Tool Weight, Maximum................... 33 LBS
Spindle Speeds, Range.................. 60 to 6000 RPM
Rapid Traverse Rate, X, Y & Z-Axis'.... 1181 IPM
Table Index Rate, (0.001/Pulse)........ 1 to 1440 DEG/MIN
Spindle Motor, 30-Minute Rating........ 30 HP
Weight, Approximately.................. 23100 LBS
PRICE: F.O.B. OUR WAREHOUSE................ $59,500.00
All machines/equipment subject to prior sale.
