National instruments pci-mio-16E-1 multifunction daq
For Sale: National instruments pci-mio-16E-1 multifunction daq
Subject National instruments pci-mio-16E-1 multifunction daq
Ad is submitted by poster:

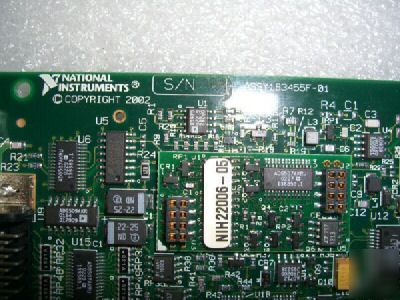

National Instruments PCI-MIO-16E-1 Multifunction DAQ
Add sensor and high-voltage measurement capability to your E Series device with NI SCC or SCXI signal conditioning. The National Instruments PCI-6070E uses E Series technology to deliver high-performance, reliable data acquisition capabilities to meet a wide range of application requirements. You get up to 1.25 MS/s, 12-bit performance with 16 single-ended analog inputs. Depending on your type of hard drive, the NI PCI-6070E can stream to disk at rates up to 1.25 MS/s.
Using NI hardware and driver software options, you have flexible OS, application development environment, and application software choices. Complete your DAQ system with NI signal conditioning to measure virtually any type of sensor and voltage.
Manufacturer: National Instruments
Type: 16-Analog-Input Multifunction DAQ
OS Support: Windows, Linux, Real-Time, Mac OS
Real-Time Compatible: Deterministic single-point control, Robust critical test
Number of Channels: 16 SE/8 DI
Maximum Voltage Range: -10..10 V
Minimum Voltage Range: -50..50 mV
Maximum Voltage Range: -10..10 V
Minimum Voltage Range: 0..10 V
Current Drive (Channel/Total): 5 mA
Input Current Flow: Sinking, Sourcing
Programmable Input Filters: No
Output Current Flow: Sinking, Sourcing
Current Drive (Channel/Total): 24 mA/192 mA
Programmable Power-Up States: No
Maximum Source Frequency: 20 MHz
Minimum Input Pulse Width: 10 ns
I/O Connector: 68-pin male 0.050 D-type
*information obtained from national instruments webpage
Glide mouse over small images to see enlarged view below.
* We don't have history or type of use of any item.
* All of our products are pulled (used) unless stated otherwise.
* We do not include operating systems, drivers, cd's, or software unless specified in the description.
* We are not responsible for compatibility issues with your system or software.
* We do not provide technical support for setup, installation, or any other user-related issues.
* We are as accurate as possible in our descriptions and We always show the defects on the pictures if there is any.
repair--parts.com bears NO responsibility for this ad. Please report ads that do not follow our
rules (on front page).
Posted By: Annie Welch
Contact: anniewelch@repair--parts.com (Annie Welch) (this is a temporary forwarding address).
