Zeroplus 16-channels pc usb logic analyzer lap-16128U.
For Sale: Zeroplus 16-channels pc usb logic analyzer lap-16128U.
Subject Zeroplus 16-channels pc usb logic analyzer lap-16128U.
Ad is submitted by poster:

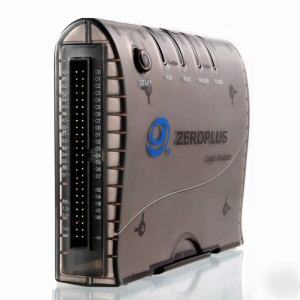

ZeroPlus PC USB Logic Analyzer LAP-16128U is a great tool for hobbyists and professionals!
Simply connect the device to the computer USB port, run the Windows application and you can analyze the UART, I2C, SPI, 1-Wire, USB 1.1 interface signals with the USB Logic Analyzer for an affordable price.
Windows (98SE/ME/2000/XP/Vista). No, we don't support Linux.
Sample rate Internal clock (Timing Mode)
Sample rate External clock (State Mode)
Threshold Voltages Working range
Threshold Voltages Accurate rate
UART (RS232C & RS485), I2C, SPI, 1-Wire, USB 1.1
* Asynchronous Clock: 100MHz asynchronous operation on all channels
* Synchronous Clock: 100Hz - 200MHz synchronous operation on all channels
* Memory Depth/channel: 128Kbits
* Data Compression ratio of up to 255:1 depending on activity
* The I2C, which stands for Inter-Integrated Circuits, is a serial synchronous half-duplex communication protocol. IIC is a synchronous communication protocol and data transmission must be in bytes, a complete IIC signal package must consists of START, ADDRESS, READ/WRITE, DATA, ACK, and STOP segments. The I2C protocol Analysis function is provided
* The UART, which stands for Universal Asynchronous Receiver/Transmitter, is a serial asynchronous protocol. The UART is often time-integrated into PC communication devices, and it usually equips an EEPROM (Electronic Erasable/Programmable Read Only Memory) for error checking proposes with other chips. UART is an asynchronous communication protocol and data transmission may not be in bytes, a complete UART signal package must consists of START, DATA, Parity check, STOP, Buad, and TXD segments. UART (RS232C & RS485) protocol Analysis function is provided
* SPI (Synchronous Peripheral Interface), is a parallel synchronous full duplex protocol with a bus-like physical interface. This protocol was first developed by Motorola and was generally used for EEPROM, ADC, FRAM, and display device drivers which are devices with low data transmission speeds. The SPI data transmission is synchronous in both receiving and transmitting directions. There are two clocking impulses: CPOL (Clock Polarity) and CPHA (Clock Phase). SPI is a synchronous communication protocol and data transmission may not be in bytes, a complete SPI signal package must consist of SCK, MOSI, MISO, and SS segments with CPHA and CPOL. SPI protocol Analysis function is provided
* Bus grouping and Bus protocol analysis functions are provided
* Binary / Decimal / Hexadecimal / ASCII data display formats are provided for protocols analysis proposes
* Timing / State / Single-processor / Bus / Real-Time instruction trace analysis functions are provided
* Trigger out function is provided to synchronous trigger with oscilloscope to measure and decode mixed signals and digital protocols at the same time
* 5ns glitch capture capability to ensure the accuracy
* The equipment able to export the data into TXT or CSV files for processing
* There are rising edge, falling edge, either edge, high and low trigger conditions are provided
* Selectable trigger position beween 100% pre-trigger and 100% post trigger plus up to 16.7 million clocks of post-trigger delay
* Channels may be selectively defaulted to "don't care" state
* 16 channels to development of MCU applications
* The enable function is provided to filter noise wave or signals
* The Statistics feature presents user information pertaining to six periodicities: Integrated Periodicities, Positive Periodicities, Negative Periodicities, Eligible Integrated Periodicities, Eligible Positive Periodicities, and Eligible Negative Periodicities
* USB-powered-ideal for PC and laptops
* Easy-to-use Window (98SE/ME/2000/XP/Vista) application
* Customize interface is provided to modify the display mode, how to modify the ruler mode, how to modify the Bus/Signal Height, and how to modify the background and foreground colors
* Software updates available from ZeroPlus website
* We also accept money orders
* We are proud to offer you our 30 day money back guarantee on the product that we sell as long as it is returned in good condition
* If you have any questions feel free to ask by e-mail: mail@hobbylab.us
