Busio-dcin (busio dc input) basic stamp, pic, atmel
For Sale: Busio-dcin (busio dc input) basic stamp, pic, atmel
Subject Busio-dcin (busio dc input) basic stamp, pic, atmel
Ad is submitted by poster:

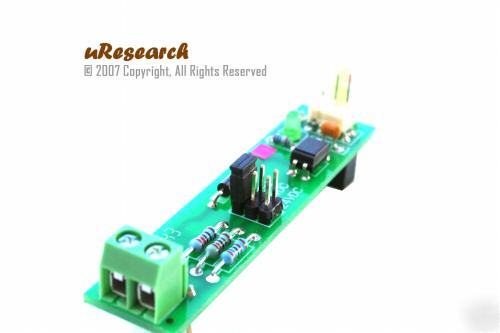

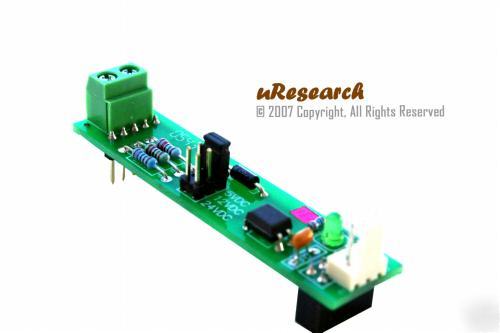

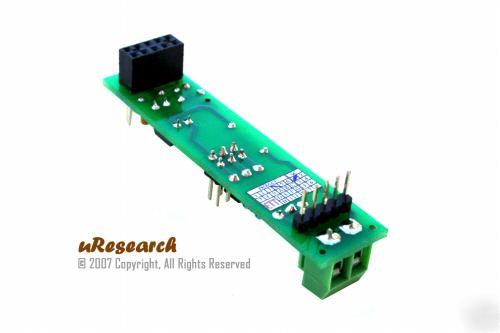

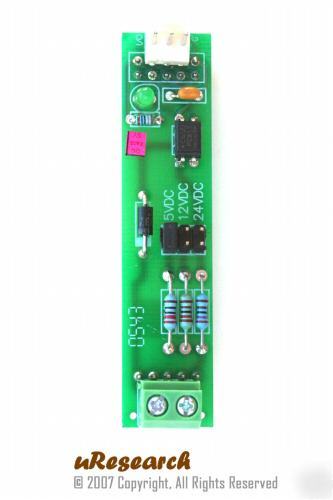

The board can be use with MR-BusIO-MAIN board or stand-alone. PCB size is 0.63†x 2.80â€
The PC817 require at least 5mA to drive input photo-coupler LED. It can take up to 6V in reverse bias. For an output (between collector and emitter), it can drive up to 35V with 50mA continuous current.
The operation of this board starts when it’s receiving input DC voltage from 2-PIN terminal block. The current will be limited around 9-10mA (enough to turn on PC817). The output of photo-coupler then pulls the I/O pin LOW then an indicator LED is illuminated. In case of user need to apply input voltage beyond 5V, 12V or 24V, the new current limited resistor can be calculate by I=V/R when I=9mA.
User must set the jumper to appropriate input voltage. This board can be use to detect DC voltage.
For more information please see: MR-BusIO-DCIN User Manual
“This is sold fully assembled and testedâ€
For more exciting products please visit WWW.MICRORESEARCH.US
