Bosch detection systems DS936 pir motion detector
For Sale: Bosch detection systems DS936 pir motion detector
Subject Bosch detection systems DS936 pir motion detector
Ad is submitted by poster:
Panoramic Ceiling-Mount Detectors

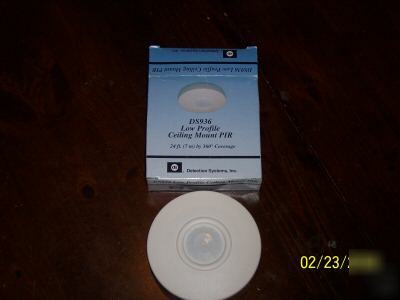

The ceiling mount, low profile panoramic DS936 PIR Detector
uses alternate polarity pulse count. It also uses a pointable
Fresnel lens to provide up to 24 ft. (7.5 m) of coverage and may
be mounted on the surface, or semi-flush directly to a ceiling or a
standard octagonal electrical box.
Field-selectable for standard, intermediate or high.
External visible alarm LED. Internal noise voltage test pins provide
precise pattern location and background disturbance evaluation
using a standard analog meter.
DETECTION SYSTEMS DS936 Description
The DS-DS936 is a low-profile, ceiling-mount passive infrared intrusion detector, which uses alternate polarity pulse count and a Fresnel lens that provides up to 24 ft. of coverage. This discreet detector can be mounted on the surface or semi-flushed to a ceiling or standard octagonal electrical box.
DETECTION SYSTEMS DS936 Features
* 7 - 12 ft. mounting height
* Enhanced signal processing
* 360-degree diameter x 24 ft. coverage
* Surface and semi-flush mountable.
DETECTION SYSTEMS DS936 7 - 12 ft. mounting height DETECTION SYSTEMS DS936 Enhanced signal processing DETECTION SYSTEMS DS936 Sealed detector chamber DETECTION SYSTEMS DS936 360-degree diameter x 24 ft. coverage DETECTION SYSTEMS DS936 Internal pointability DETECTION SYSTEMS DS936 Surface and semi-flush mountable. DETECTION SYSTEMS DS936 UL and CE listed.
DETECTION SYSTEMS DS936 Specifications
125 mA @ 28 VDC; 3W for resistive loads
125 mA @ 28 VDC; normally closed
Material: High impact ABS plastic enclosure
Dimensions (HxD): 1.2 in. x 4.6 in. (3.05 cm x 11.7 cm)
Operating Temperature: -20°F to +120°F (-29°C to +49°C)
For UL Certificated installations, +32°F
Height Range: 7 to 12 ft. (2 m to 3.6 m)
Location: Surface or semi-flush in/on ceiling or in/
on standard 4 in. (10.2 cm) octagonal
Pattern Pointability ±15° rotational
Power Requirements 10 to 15 VDC, 20 mA @ 12 VDC
No alarm or setup on critical frequencies
in the range from 26 to 950 Megahertz at
Tamper Output Normally Closed cover activated tamper
switch with separate terminals. Tamper
