Supermax max-3 cnc vertical machining center
For Sale: Supermax max-3 cnc vertical machining center
Subject Supermax max-3 cnc vertical machining center
Ad is submitted by poster:

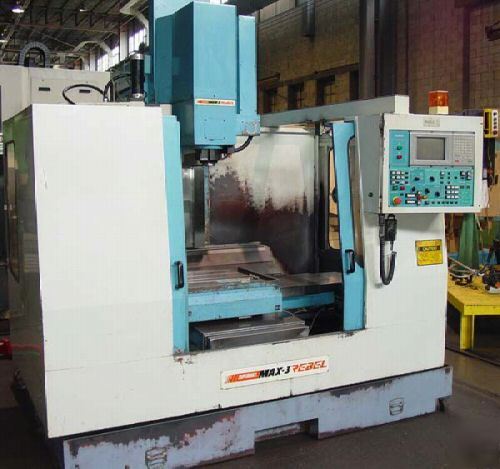

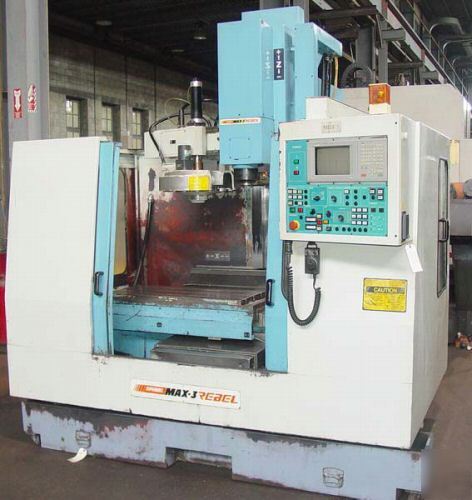

SUPERMAX MAX-3 REBEL CNC VERTICAL MACHINING CENTER
New 1995, S/N 509132, Stock# K12778

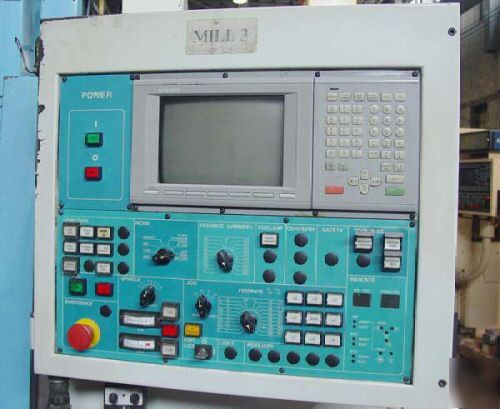

Mitsubishi 520M CNC Control, Hand Held Pendent Manual Pulse Generator,
Heavy Duty Box Way Construction, 16 Station Automatic Tool Changer, Full
Coolant Enclosure, RS-232 Port, Teach Mode, Spindle Load Meter, Chip and
X Travel (Longitudinal)............................... 40"
Y Travel (Cross)...................................... 18.25"
Z Travel (Vertical)................................... 25"
Table Working Surface................................. 37.25"x 16"
Table Work Load Capacity.............................. 770 LBS
Spindle Horsepower.................................... 10 HP
Spindle Speeds........................................ 30-6000 RPM
Spindle Taper......................................... #40 CAT
Feed Rates, X & Y..................................... 0.1 to 472 IPM
Feed Rate, Z.......................................... 0.1 to 393 IPM
Rapid Traverse X & Y.................................. 787 IPM
Rapid Traverse Z...................................... 787 IPM
Tool Storage Capacity................................. 16
Electrics............................................. 230/3/60
Approximate Dimensions................................ 79" x 87"
Approximate Height.................................... 106"
Approximate Weight.................................... 10,820 LBS
CONDITION: This Machine Appears to be in Very Good Condition ! Spindle
Bearings were Replaced about 6 Months ago. Built in 1995
