R&s SMATE200A vector signal generator, 100 khz to 6 ghz


For Sale: R&s SMATE200A vector signal generator, 100 khz to 6 ghz


Subject R&s SMATE200A vector signal generator, 100 khz to 6 ghz
Ad is submitted by poster: R&S SMATE200A/B106/B206 Vector Signal Generator, 100 kHz to 6 GHz
Based on the successful R&S SMU200A platform, the SMATE200A is specifically designed for production environments. As such, the display and front panel user interface have been removed, the connectors moved to the rear, and performance has been optimized for fastest setting times to improve factory throughput. Like the R&S SMU200A, however, the two-generators-in-one concept has been kept, occupying four height units – a plus for production where space is at a premium. All of this is available without compromising the excellent RF performance and baseband flexibility synonymous with the R&S SMU200A.
* Very short setting times for frequency and level (e.g. for frequency changes <2 ms over GPIB and <400 µs in List mode)
* Fast Hop mode offering flexibly addressable frequency/level pairs; as fast as normal List mode
* Multisegment waveform function enables fast switching between different test signals in waveform generator
Special hardware triggers for basic functions
* Electronic attenuator for entire frequency and level range

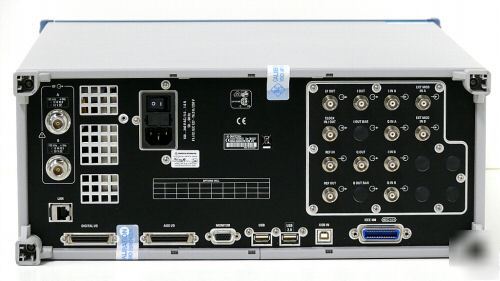

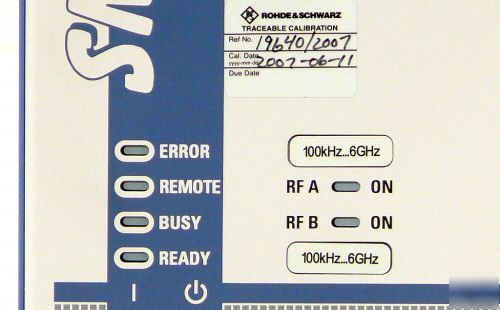

* Status LEDs on front, connectors on rear
* Revised cooling concept for longer life in production
* Very low SSB phase noise (typ. –135 dBc/Hz at f = 1 GHz, 20 kHz offset; typ. –140 dBc/Hz with low phase noise option)
* Wideband noise of typ. –153 dBc (>10 MHz carrier offset, f = 1 GHz, 1 Hz measurement bandwidth)
* High output power of typ. +26 dBm with high-power output option
* Very high level repeatability of typ. 0.05 dB
* I/Q modulator with 200 MHz RF bandwidth
* Excellent ACLR performance of typ. +70 dB with 3GPP FDD
* Up to two completely independent signal generators in one unit
* Choice of 3 GHz or 6 GHz frequency options in one or two paths (Note from seller, gigabloke: This particular instrument has the 6 GHz option for both RF path A and RF path B, see pictures to confirm)
* Up to two independent baseband sources that not only support realtime signal generation but also offer arbitrary waveform generation with up to 128 Msamples each
* Remote-controllable via LAN (Gigabit Ethernet) and GPIB

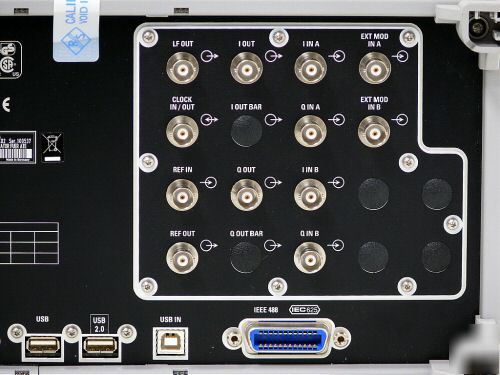

* User-definable triggers and markers combined in one SCSI connector
* USB connectors for keyboard, mouse
* VGA connector for an external display
B106: RF path A 100 KHz to 6 GHz
B206: RF path B 100 KHz to 6 GHz

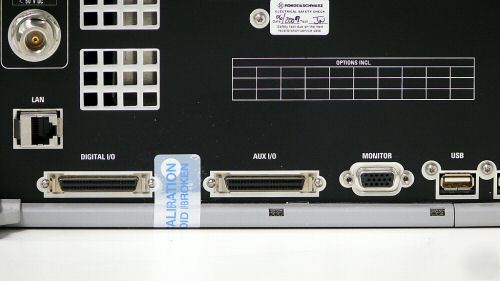

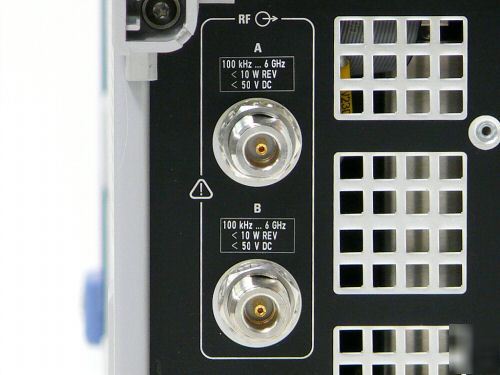

NOTE: although these options are not indicated in the chart on the back of the instrument, we have documentation from Rohde & Schwarz that confirms that these options are installed. See also the picture of outputs A and B which indicate the frequncy range covered.
Accessories included: Quick Start Manual, plus on CD: operator manuals, Service manuals, data sheets and more; US type power cord

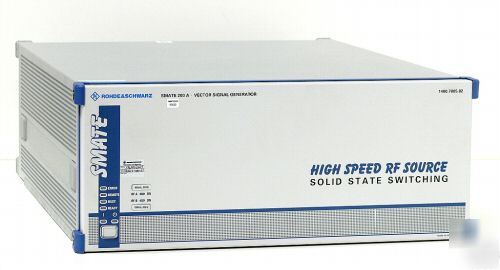

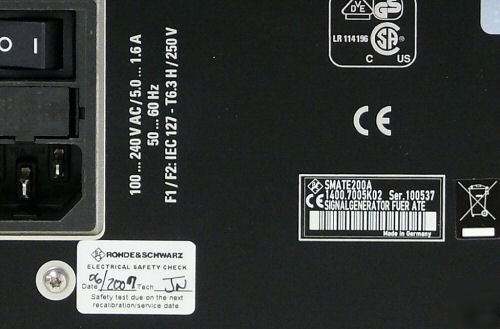

More about the instrument: Calibrated by Rohde & Schwarz, with data, good until June 2008. Serial number: 100537. As you can see in the pictures, it is in good condition with few signs of wear and tear. All photos on this page are of the actual item offered here.
Guaranteed to be clean and operational, with 14-day right of return
About us: For 15 years Naptech has sold many thousands of pieces of test equipment to thousands of companies including to Government Contractors. We have five full-time engineers to ensure every instrument we supply performs reliably and to full manufacturer's specs. Naptech has a reputation for providing quality equipment at a reasonable price. You can find Naptech on the world-wide web
