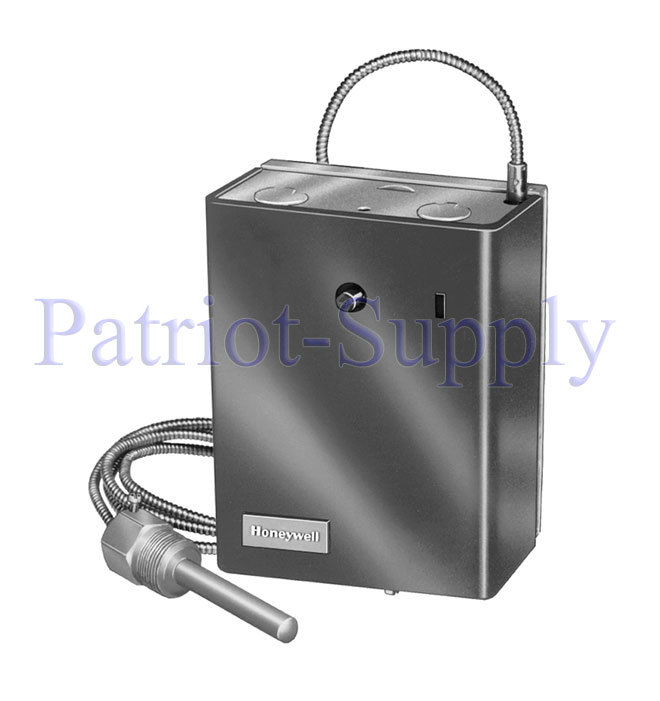

Honeywell R8182H1070 aquastat and primary control
For Sale: Honeywell R8182H1070 aquastat and primary control
Subject Honeywell R8182H1070 aquastat and primary control
Ad is submitted by poster:
Combination Protectorelayâ„¢ and Hydronic Heating Control with High limit: 10 F fixed; low limit/circulator: 10 F to 25 F adj. Differential
• Use in intermittent ignition applications.
• Capable of zone control with zone valves.
• Circulator zone control with ZC and ZR terminals on R8182D,E,H,J.
• Flame failure during the running cycle results in a 45 second attempt to restart.
• If unsuccessful, safety shutoff occurs, requiring manual reset before burner can be restarted.
• R8182D,E,F mount directly on burner; R8182H,J mount on 4 x 4 in. junction box and include 5 ft (1.5 m) armored capillary with remote sensor.
• C554A Cadmium Sulfide Flame Detector and a 24 Vac thermostat required.
Combination Protectorelayâ„¢ and Hydronic Heating Control with High limit: 10 F fixed; low limit/circulator: 10 F to 25 F adj. Differential
Use in an intermittent ignition application
Operating Range, Low Limit (F)
Operating Range, Low Limit (C)
Operating Range, High Limit (F)
Operating Range, High Limit (C)
High limit: 10 F fixed; Low limit/circulator: 10 F to 25 F adj.
Maximum Operating Pressure (psi)
200 psi on immersion well; 100 psi direct immersion.
Maximum Operating Pressure (kPa)
1378 kPa on immersion well; 90 kPa direct immersion.
Electrical Ratings (burner AFL)
Electrical Ratings (burner ALR)
7 1/8 in. high x 5 1/4 in. wide x 3 7/16 in. deep.
181 mm high x 133 mm wide x 87 mm deep.
Operating Humidity Range (% RH)
Maximum Ambient Temperature (F)
Maximum Ambient Temperature (C)
Approvals, Underwriters Laboratories Inc
UL Listed: File No. listed: MP268, Vol. 3,4 (R8182D,E,F), Vol. 37 (R8182H,J), Sec. 1.
Approvals, Canadian Standards Association
Auxiliary ZC and ZR terminals may be used to provide circulator zone control through an R845A Switching Relay. Heat-conductive compound and horizontal case.
