#FW400E heckert plain horizontal mill 18398
For Sale: #FW400E heckert plain horizontal mill 18398
Subject #FW400E heckert plain horizontal mill 18398
Ad is submitted by poster:

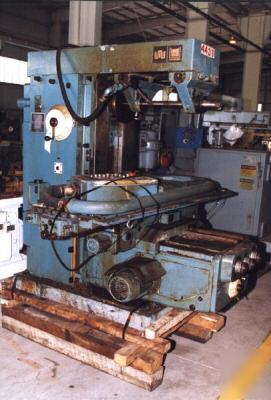

#FW400E HECKERT PLAIN HORIZONTAL MILL
Serial No 325290/142, Model FW400E,
Table Dimensions (Overall), W x L....... 18" x 71"
Table Working Surface, W x L............ 15.75" x 63"
Table Longitudinal Travel (X-Axis)...... 44"
Saddle In-Out Cross Travel (Z-Axis)..... 13.5"
Knee Vertical Travel (Y-Axis)........... 15.75"
Table Load Capacity..................... 3300 LBS
Spindle Taper........................... #50 ISO
(18) Spindle Speeds, Range.............. 45 to 2240 RPM
(18) Longitudinal and Cross Feeds....... .6 to 31.5 IPM
(18) Vertical Feeds, Range.............. .02 to 9.8 IPM
Power Rapid Traverse, Long & Cross...... 125 IPM
Power Rapid Traverse, Vertical.......... 40 IPM
Spindle Motor, Horsepower............... 15 HP
Feed Motor, Horsepower.................. 3 HP
Weight, Approximately................... 8600 LBS
NOTE: VERTICAL SCREW NEEDS A PIT THAT HAS A 4" HOLE THAT IS 15" LONG.
PRICE: F.O.B. OUR WAREHOUSE............ $1,950.00
All machines/equipment subject to prior sale.
